Screw Pumps
Screw Pumps are positive displacement pumps designed for smooth, pulse-free transfer of high-viscosity and abrasive fluids in industrial applications.
- Pump Type
- Positive Displacement – Screw Type
- Flow Rate
- Up to 500 m³/hr (varies by model)
- Pressure
- Up to 25 bar
- Viscosity Handling
- Up to 1,00,000 cSt
- Manufacturer since 1984
- ISO 14001 & 45001
- Application-led selection
Overview
About the Screw Pumps
Our screw pumps are precision-engineered to deliver reliable, smooth, and continuous fluid transfer in demanding industrial applications. Designed for high efficiency and low pulsation, these pumps are ideal for handling viscous, abrasive, and shear-sensitive liquids across chemical, petrochemical, food processing, and pharmaceutical industries.
Key Features & Benefits
High Efficiency: Smooth, continuous flow with minimal pulsation ensures stable operation.
Versatile Fluid Handling: Capable of pumping viscous, abrasive, and shear-sensitive fluids.
Robust Construction: Designed with high-quality materials for durability in harsh industrial environments.
Wide Operating Range: Handles low to high flow rates and moderate to high pressures.
Low Noise & Vibration: Ensures quiet operation and minimal mechanical wear.
Leak-Free Design: Advanced sealing options prevent fluid leakage and contamination.
Easy Maintenance: Simple design allows quick access for inspection and servicing.
Flexible Mounting Options: Can be installed horizontally or vertically to suit system requirements.
Applications
Our screw pumps are highly suited for:
Chemical Industry: Safe transfer of corrosive and viscous chemicals.
Petrochemical & Oil Industry: Pumping crude oil, lubricants, and heavy fuels.
Food & Beverage Industry: Gentle handling of syrups, oils, and other viscous liquids.
Pharmaceutical Manufacturing: Accurate, contamination-free transfer of liquids.
Wastewater Treatment: Handling sludge, slurry, and other thick liquids.
Why Choose Our Screw Pumps?
Reliable & Smooth Operation: Continuous, low-pulsation flow for sensitive processes.
Durable Design: High-quality materials and robust construction ensure long service life.
Versatile Fluid Compatibility: Handles a wide range of liquids, including viscous and abrasive fluids.
Low Maintenance: Easy inspection and service reduce downtime.
Quiet & Efficient: Operates with minimal noise and vibration.
Flexible Installation: Supports multiple mounting orientations and system requirements.
Optimize your fluid transfer systems with our high-performance screw pumps. Contact us today for detailed specifications, customized solutions, and a free quote.
Engineering Data
Technical Specifications
| Pump Type | Positive Displacement – Screw Type |
|---|---|
| Flow Rate | Up to 500 m³/hr (varies by model) |
| Pressure | Up to 25 bar |
| Viscosity Handling | Up to 1,00,000 cSt |
| Temperature Range | Up to 250°C |
| Speed | 500 to 3000 RPM |
| Drive Type | Electric Motor / Gearbox / Flameproof Motor (optional) |
| Sealing | Mechanical Seal / Gland Packing |
| Mounting | Baseplate / Skid Mounted |
Construction
Materials of Construction
Pump Casing
Cast Iron / SS304 / SS316
Screws
EN8 / SS304 / SS316 (Hardened)
Shaft
SS304 / SS316
Bush/Bearing
Teflon / Bronze / Carbon
Seals
Mechanical / Gland / Lip Seal
Fasteners
SS304 / MS Zinc Plated
Use Cases
Industry Applications
- Chemical Industry:
- For conveying and proportioning acids, sludges, viscous pastes, sensitive plastic dispersions, suspensions, and adhesives.
- Mining Industry:
- Used as sinking pumps, sump pumps, and flotation sludge pumps for demanding mining operations.
- Paper Industry:
- For handling paper pulp, glue, coatings, pastes, and fibrous materials.
- Sugar Industry:
- Suitable for molasses, concentrated wastewater, sludge, and saturated slurry applications.
- Food & Beverage Industry:
- Ideal for transferring peanut butter, jam, fruit pulps, vegetables, fruit juices, concentrates, grape mash, yeast, wine, and beer.
- Dairy Industry:
- For hygienic handling of milk, cream, cheese, and curd.
- Paint & Lacquer Industry:
- For handling pigments, paints, dyes, lacquers, and solvents.
- Sewage Water Purification & Effluent Treatment Plants:
- For wastewater handling, settled sludge, sediment water, sludge circulation, activated sludge, and industrial effluents.
- Civil Engineering Industry:
- For cement water, sand mixtures, cement slurry, bentonite, tar, and bitumen.
Selection Guide
Positive Displacement vs. Centrifugal Pumps
-
1
Positive displacement pumps suit controlled flow, higher viscosity, and pressure-sensitive transfer.
-
2
Centrifugal pumps suit continuous movement of clean, low-viscosity liquids at stable duty points.
-
3
Final selection should be based on duty point, fluid behavior, installation conditions, and maintenance goals.
For selection, share flow rate, discharge pressure or head, viscosity, temperature, solids content and installation conditions — our engineers will recommend the right screw configuration.
Media
Technical Media

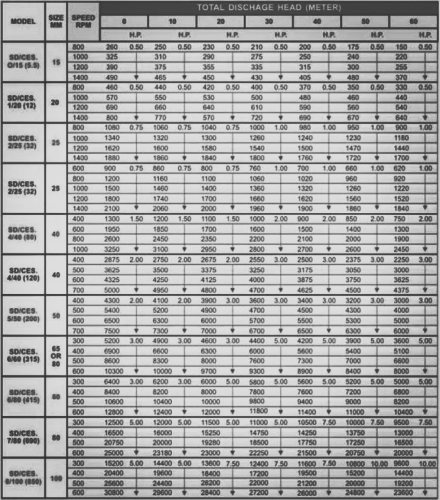

Performance Curve
Questions
Frequently Asked Questions
What is Screw Pumps used for?
Screw Pumps is used for industrial liquid handling where the selected screw configuration matches flow, pressure, material compatibility, and site duty requirements.
How do I select the right screw model?
Share the fluid name, flow rate, head or pressure, viscosity, temperature, solids content, installation details, and operating hours so the team can recommend a suitable model.
Can Sando support industrial pump manufacturer?
Yes. Sando Rotary can review the duty conditions and suggest suitable products, materials, elastomers, and accessories for industrial pump manufacturer.
Do you provide technical specifications and application guidance?
Yes. Specifications, catalogs, material guidance, performance details, and application support can be shared for procurement and engineering review.
