The Ultimate Guide to AODD Pumps: Manufacturing, Types, and Applications

In modern industries, fluid transfer is not just about moving liquid from one place to another. It is about safety, reliability, chemical compatibility, performance, and long-term efficiency.

An AODD Pump, also known as an Air Operated Double Diaphragm Pump, is one of the most trusted pumping solutions for handling chemicals, solvents, slurry, viscous fluids, abrasive media, and hazardous liquids.

As a reliable AODD Pump Manufacturer in India, Sando Rotary Equipments Pvt. Ltd. focuses on application-based pump manufacturing, correct material selection, durable construction, and long-term performance for demanding industrial applications.

What is an AODD Pump?

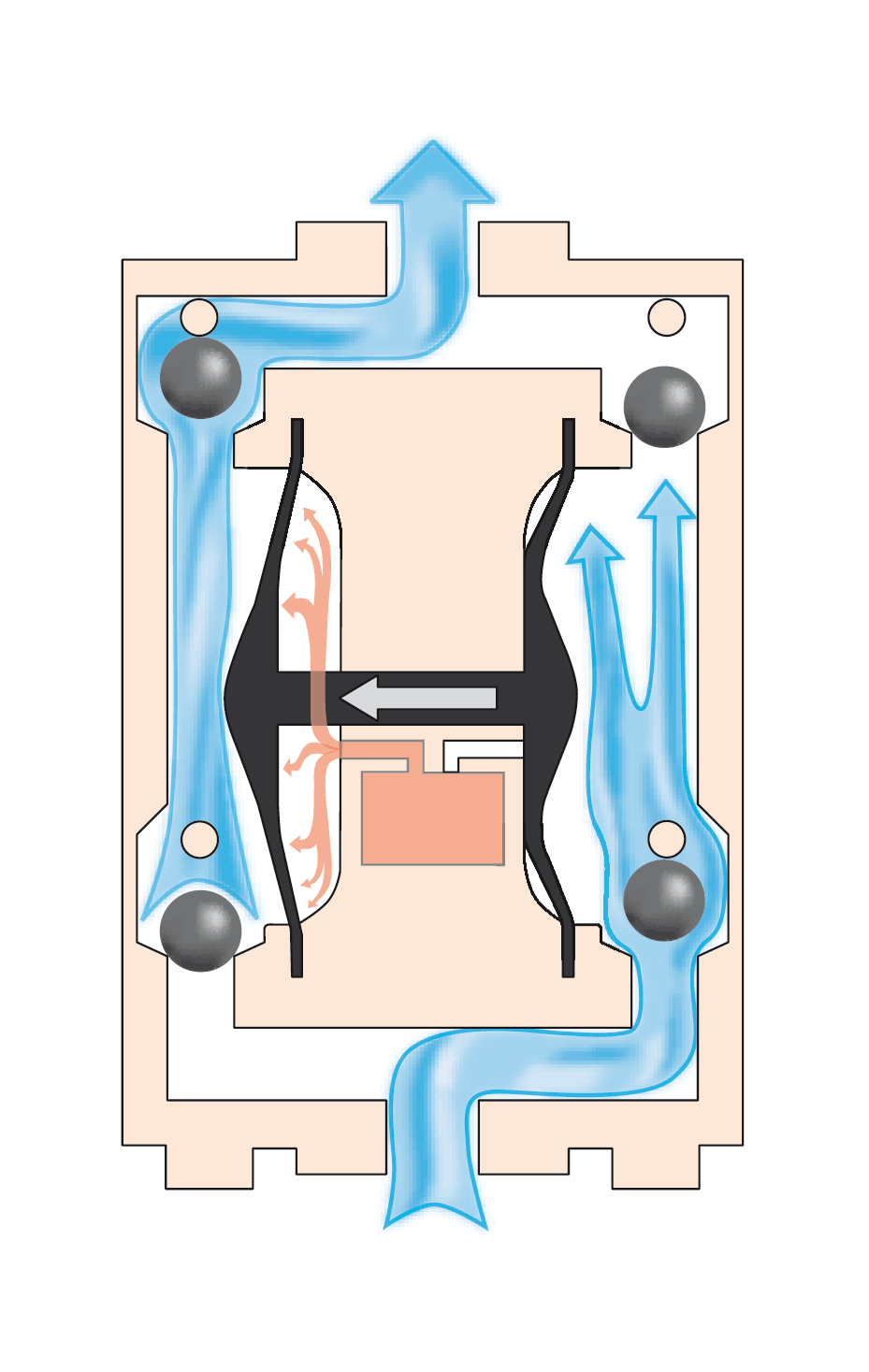

An AODD Pump is a positive displacement pump operated by compressed air. It uses two flexible diaphragms that move back and forth to create suction and discharge.

Because it does not require an electric motor, an AODD pump is suitable for applications where safety, dry-run capability, chemical resistance, and easy maintenance are important.

AODD pumps are widely used in industries such as:

• Chemical processing
• Paints and coatings
• Pharmaceuticals
• Food processing
• Wastewater treatment
• Ceramic and slurry transfer
• Solvent handling
• Oil and lubricant transfer

How AODD Pump Manufacturing Works

A reliable AODD pump is not made only by assembling parts. It requires proper design, material selection, machining, testing, and application understanding. The manufacturing process includes:

1. Pump Design

The design of an AODD pump depends on flow rate, pressure, liquid type, suction condition, viscosity, particle size, and operating environment.

A good design ensures:

• Smooth liquid transfer
• Better suction performance
• Lower air consumption
• Longer diaphragm life
• Reduced leakage risk
• Easy maintenance

2. Material Selection

Material selection is one of the most important parts of AODD pump manufacturing. The pump body, diaphragm, valve ball, valve seat, and other wetted parts must be compatible with the liquid being handled.

Common materials include:

• PP (Polypropylene)
• PVDF
• Stainless Steel
• Aluminium
• PTFE
• Santoprene
• Buna
• Viton

Correct material selection helps prevent corrosion, leakage, diaphragm failure, and frequent breakdown.

3. Precision Machining

Pump components must be machined accurately to maintain proper sealing, alignment, and performance. Precision machining helps improve:

• Pump efficiency
• Leakage control
• Part fitting
• Air valve performance
• Overall pump life

4. Diaphragm and Valve Assembly

The diaphragm is the heart of an AODD pump. It creates suction and discharge movement inside the pump. The valve ball and valve seat control the flow direction of the liquid. Proper assembly ensures smooth pumping and prevents backflow.

5. Air Valve System

The air valve system controls the movement of compressed air inside the pump. A well-designed air valve improves:

• Stable pump operation
• Better air distribution
• Smooth diaphragm movement
• Reduced stalling
• Efficient performance

6. Testing and Quality Check

Every industrial AODD pump should be tested before dispatch. Important quality checks include:

• Leakage testing
• Air pressure testing
• Flow performance checking
• Suction checking
• Diaphragm movement checking
• Final visual inspection

Testing ensures the pump is ready for real industrial working conditions.

Types of AODD Pumps Manufactured by Sando

Sando manufactures AODD pumps for different industries and liquid-handling requirements.

• PP AODD Pump: Suitable for mild chemicals, acids, alkalis, and general chemical transfer applications.
• PVDF AODD Pump: Used for strong corrosive chemicals and aggressive liquid transfer applications.
• Stainless Steel AODD Pump: Suitable for solvents, hygienic fluids, food processing, pharmaceutical applications, and industrial chemical transfer.
• Aluminium AODD Pump: Suitable for oils, lubricants, general industrial liquids, and utility transfer applications.
• PTFE Diaphragm AODD Pump: Suitable for aggressive chemicals and high chemical resistance applications.
• Santoprene Diaphragm AODD Pump: Suitable for abrasive fluids, wastewater, slurry, and general industrial use.

Key Features of AODD Pumps

AODD pumps are preferred in industries because they offer practical advantages in difficult fluid-handling applications. Key features include:

• Air operated design
• Self-priming capability
• Dry-run safe operation
• No mechanical seal
• Handles viscous liquids
• Handles abrasive fluids
• Handles corrosive chemicals
• Suitable for hazardous areas
• Easy maintenance
• Portable and compact design
• Variable flow control
• Safe operation without electric motor

Industrial Applications of AODD Pumps

AODD pumps are used across multiple industries because they can handle different types of liquids safely and efficiently.

• Chemical Industry: Used for transferring acids, alkalis, solvents, dyes, resins, and other process chemicals.
• Paints and Coatings Industry: Transferring paints, pigments, inks, varnishes, resins, and coating materials.
• Pharmaceutical Industry: Safe chemical transfer, process liquid handling, and controlled fluid movement.
• Food Processing Industry: Used for oils, syrups, sauces, liquid ingredients, and other food-grade transfer applications.
• Wastewater Treatment: Suitable for sludge, slurry, dirty water, chemical dosing support, and wastewater transfer.
• Ceramic and Slurry Industry: Useful for abrasive slurry, ceramic slip, and solids-containing liquids.
• Oil and Lubricant Industry: Can handle oils, lubricants, grease-based fluids, and petroleum products.

Why Material Selection Matters in AODD Pump Manufacturing

Wrong material selection can lead to pump failure, leakage, corrosion, diaphragm damage, and costly downtime.

Before selecting an AODD pump, these factors must be checked:

• Liquid name and chemical composition
• Temperature and viscosity
• Solid particle size
• Flow requirement and discharge pressure
• Suction lift
• Compatibility with pump body and diaphragm material
• Application environment

At Sando, pump selection is done based on application requirements, not only pump size. This helps industries get better performance and longer pump life.
